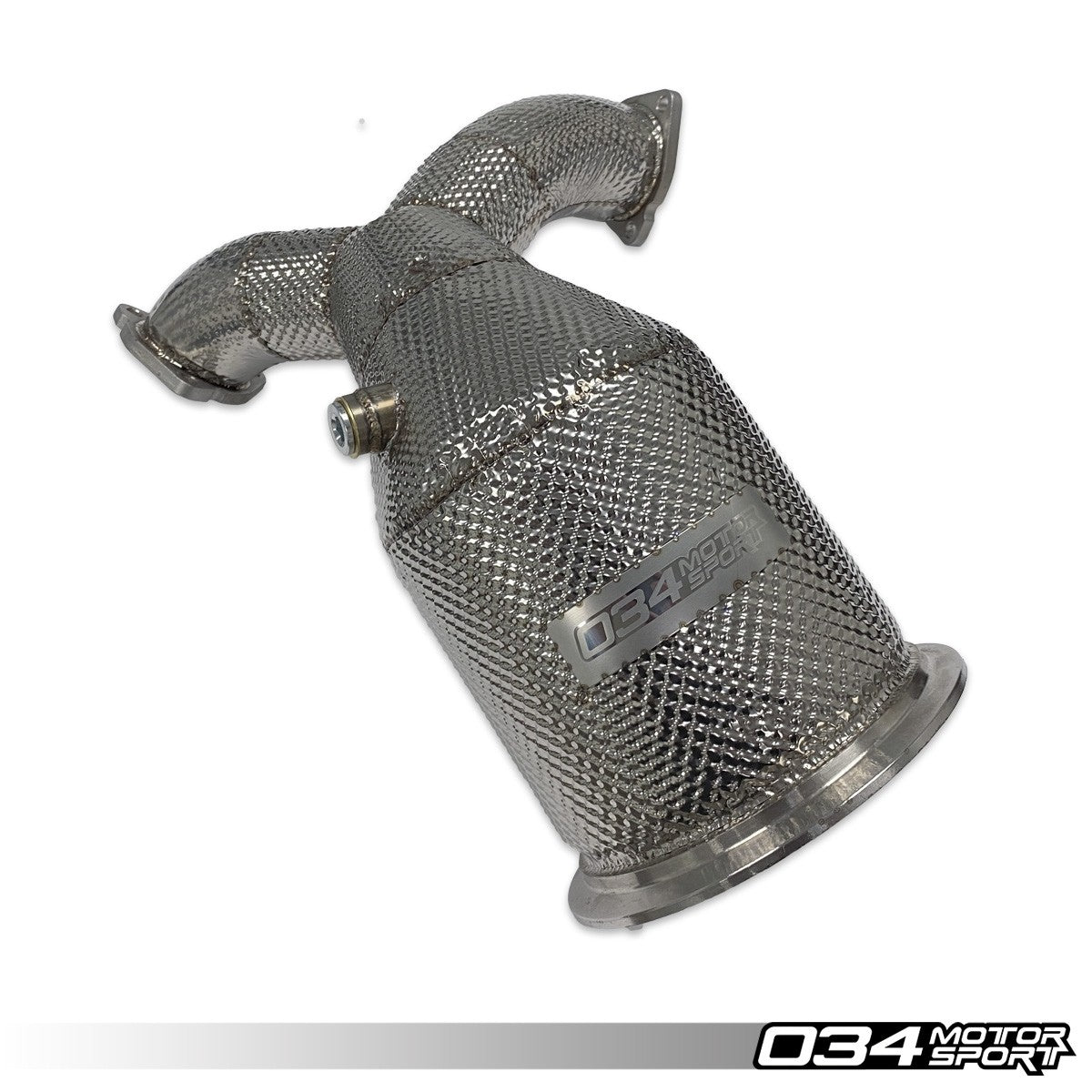

The 034Motorsport Stainless Steel Racing Catalyst for B9 Audi S4/S5 is designed as a drop-in replacement for the restrictive factory catalytic converter. The Stainless Steel Racing Catalyst offers increased horsepower and torque throughout the powerband, reduced turbocharger lag, improved throttle response, and an enhanced exhaust note. This upgrade eliminates the primary flow limitation in the factory exhaust system, allowing you to maximize the potential of your turbocharged engine.

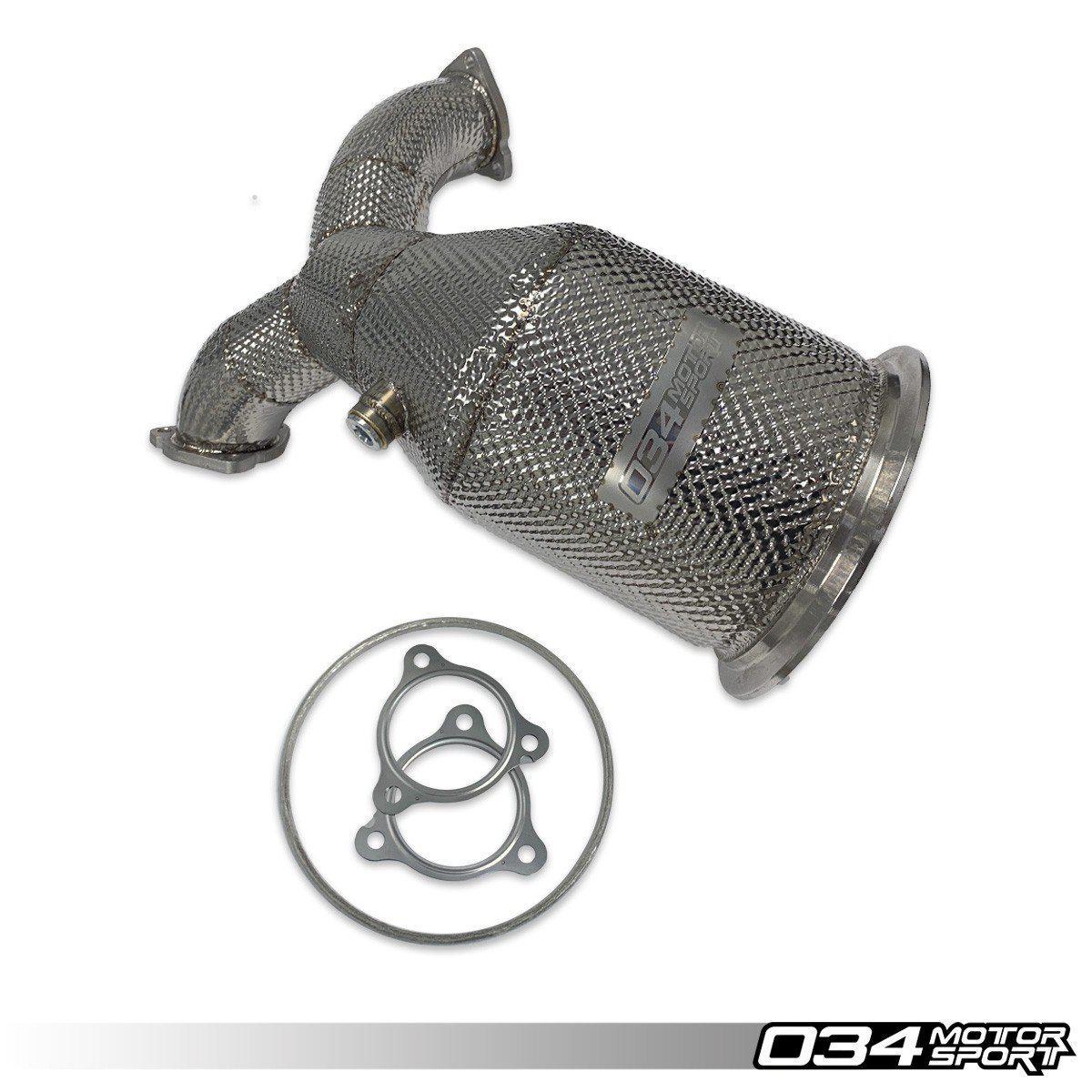

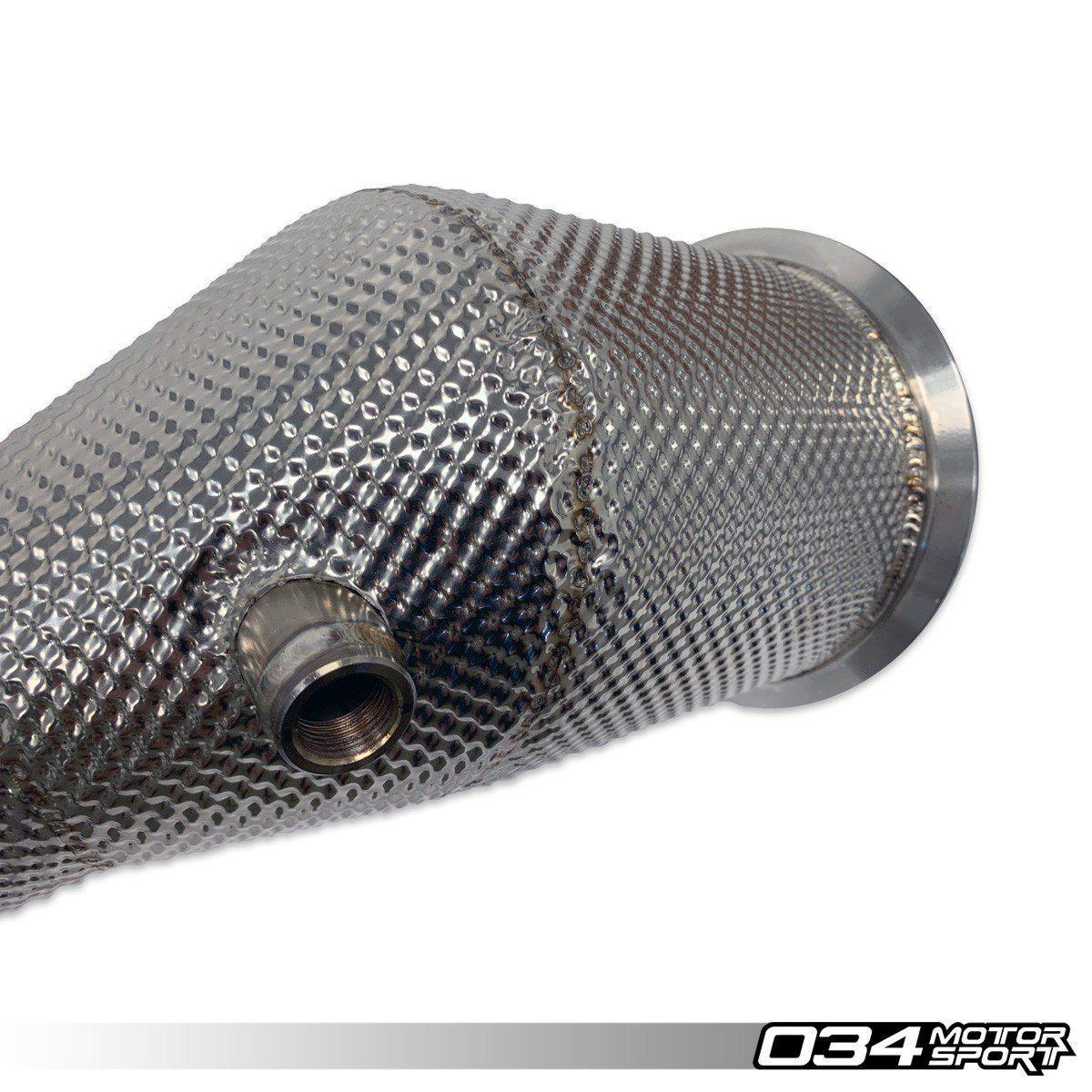

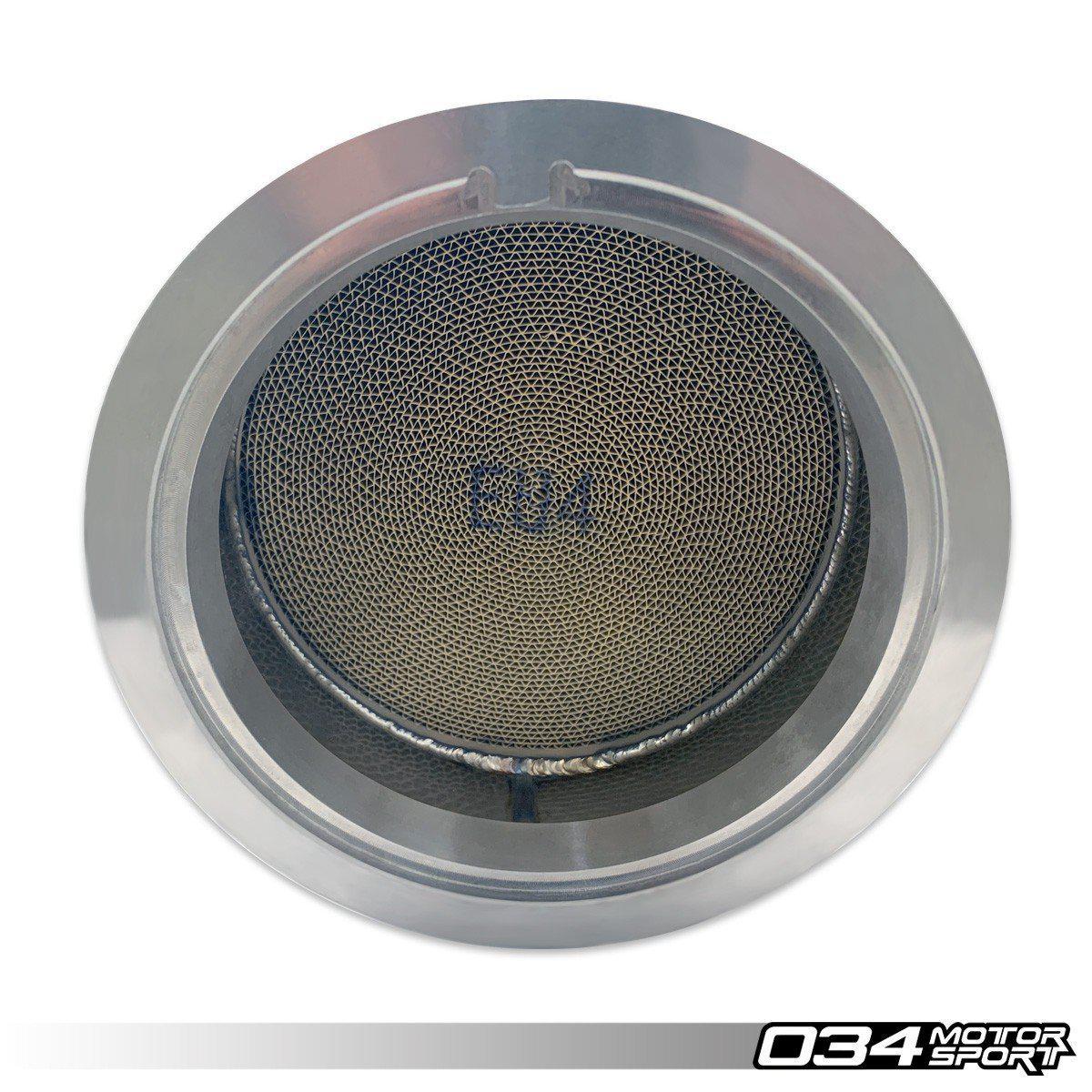

Optimized for increased flow and maximum performance, the Stainless Steel Racing Catalyst features a massive 148mm diameter Euro 4 racing catalytic converter in the factory location. This complete drop-in solution includes an integrated v-band flange at the turbine outlet, integrated oxygen sensor bung after the catalyst, integrated 3-bolt downpipe flanges, and a complete gasket/hardware kit to allow for precise fitment and ease of installation. The Stainless Steel Racing Catalyst for B9 Audi S4/S5 vehicles is constructed from 304 stainless steel for maximum durability and corrosion resistance, is TIG-welded, and includes an integrated OE style heat isolation barrier to minimize exhaust heat transferred into the engine bay.
034Motorsport's Stainless Steel Racing Catalyst was developed entirely in-house on 034Motorsport's Development B9 Audi S4 utilizing the latest in 3D Scanning Technology, CAD Software, and Rapid Prototyping Techniques. Final production units were then tested extensively on track in B9 Audi S4 vehicles before release.

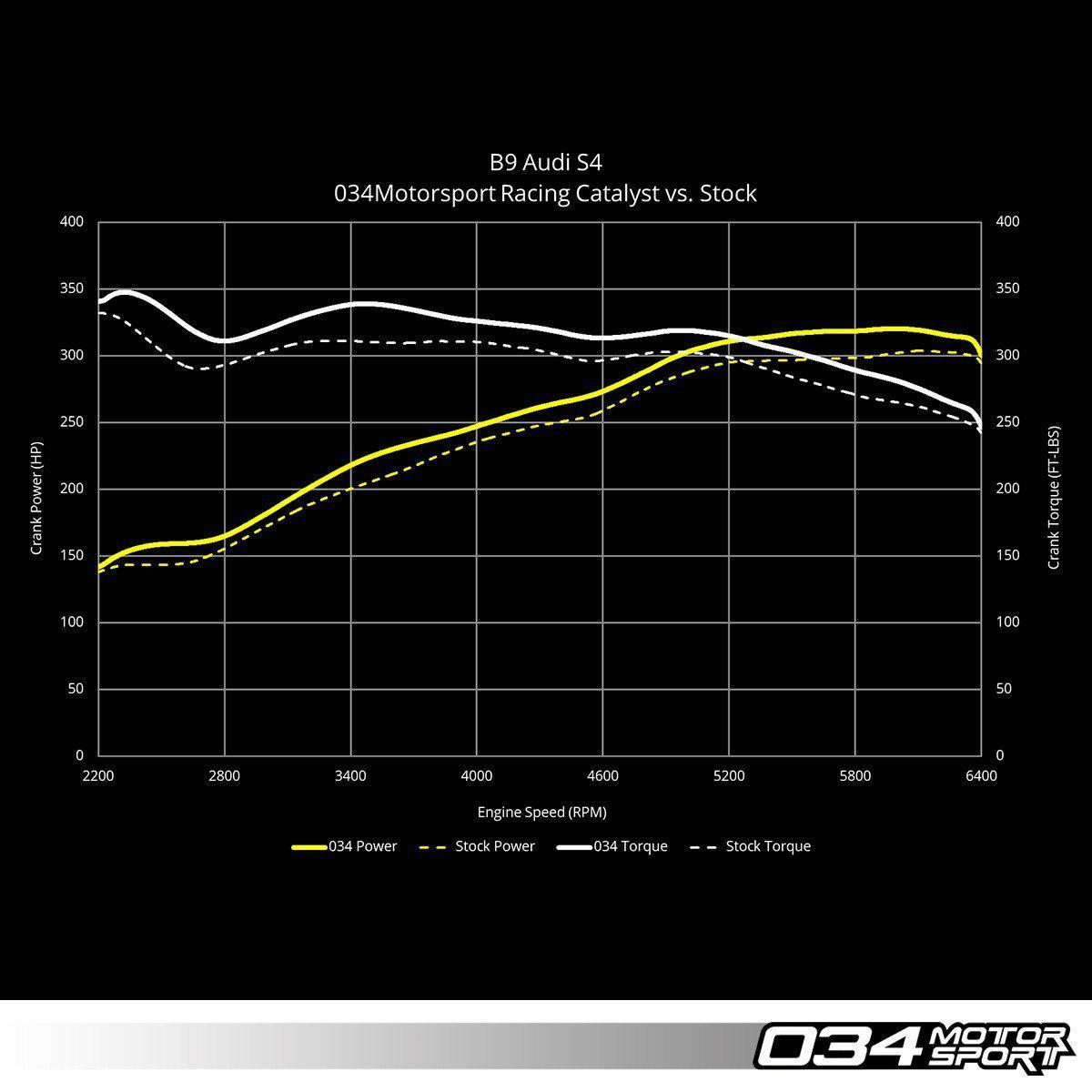

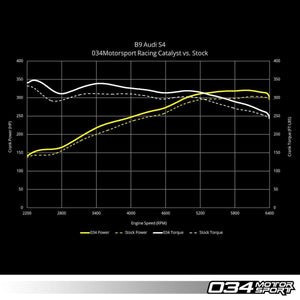

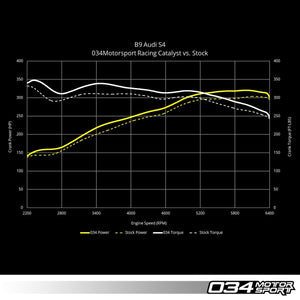

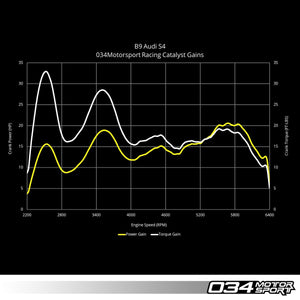

These Performance Comparisons were performed using an in-house 2018 Audi S4 3.0 TFSI on 91 Octane fuel.
| Factory Catalyst (91 Octane) | 034 Race Catalyst (91 Octane) | |
|---|---|---|
| Peak Horsepower | 304 HP | 320 HP |
| Peak Torque | 332 FT-LBS | 348 FT-LBS |

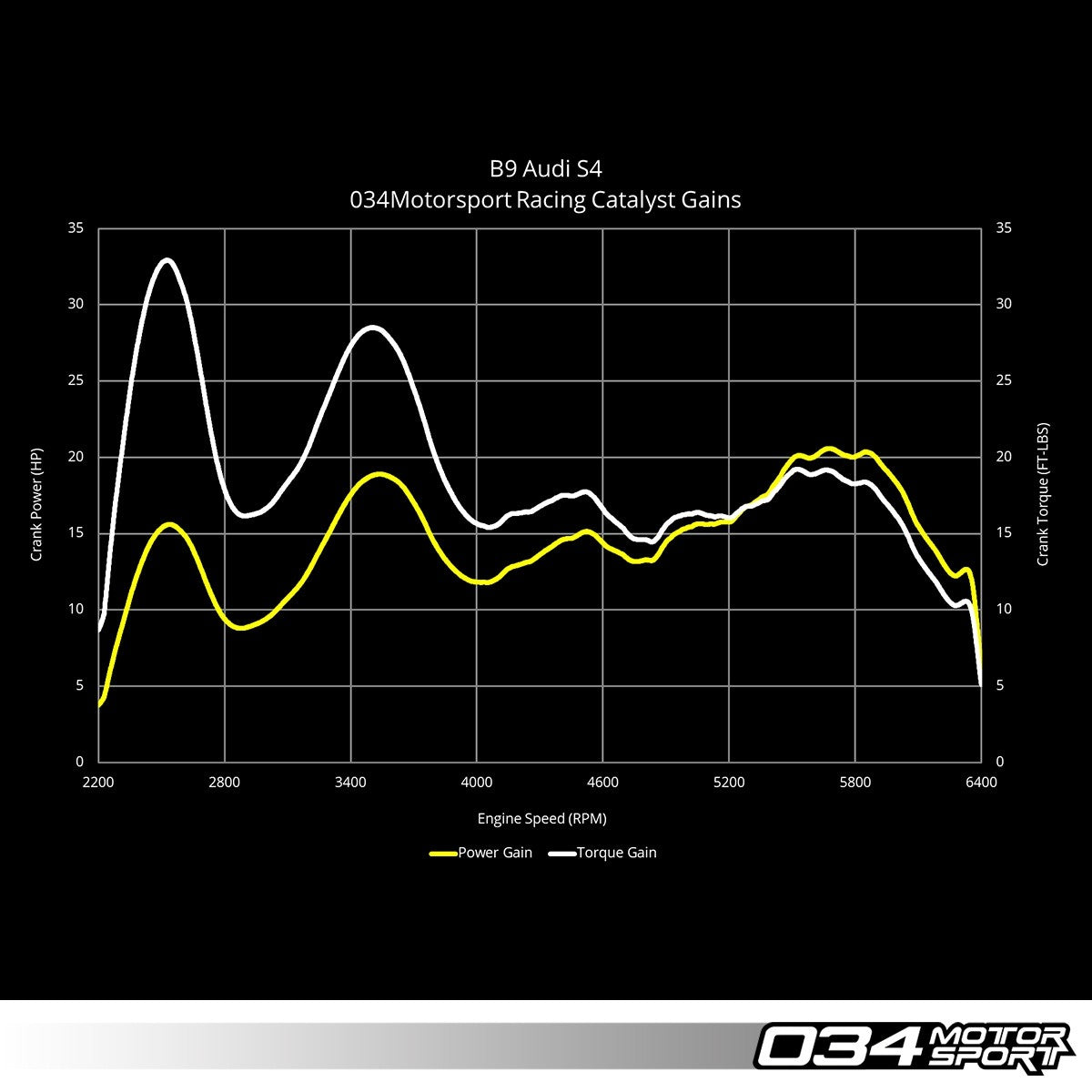

| Peak HP Gains vs. Factory Catalyst | - | 21 HP @ 5,680 RPM |
| Peak TQ Gains vs. Factory Catalyst | - | 33 FT-LBS @ 2,525 RPM |
